Introduction of Hsutron DSO138 digital oscilloscope set
The DSO138 digital oscilloscope is an essential tool for electronics enthusiasts and professionals alike. It offers a compact design combined with powerful functionality, making it ideal for various applications.
Key Features:
One of the notable features of the DSO138 is its ability to accurately display waveforms in a clear and concise manner. With a sampling rate of 1Msps and a bandwidth of 200kHz, this device allows users to analyze their signals efficiently. Additionally, the user-friendly interface simplifies navigation and enhances usability.
Applications
The DSO138 digital oscilloscope is perfect for troubleshooting circuit designs, conducting experiments, and educational purposes. Its portability means you can easily carry it to different work environments. Embrace precision and clarity in your projects with the DSO138.
DSO138 oscilloscope production kit features:
For electronic production training, the instruction materials are complete and detailed, including circuit diagrams, production guidance, usage instructions, troubleshooting methods, etc., with a high success rate in production.

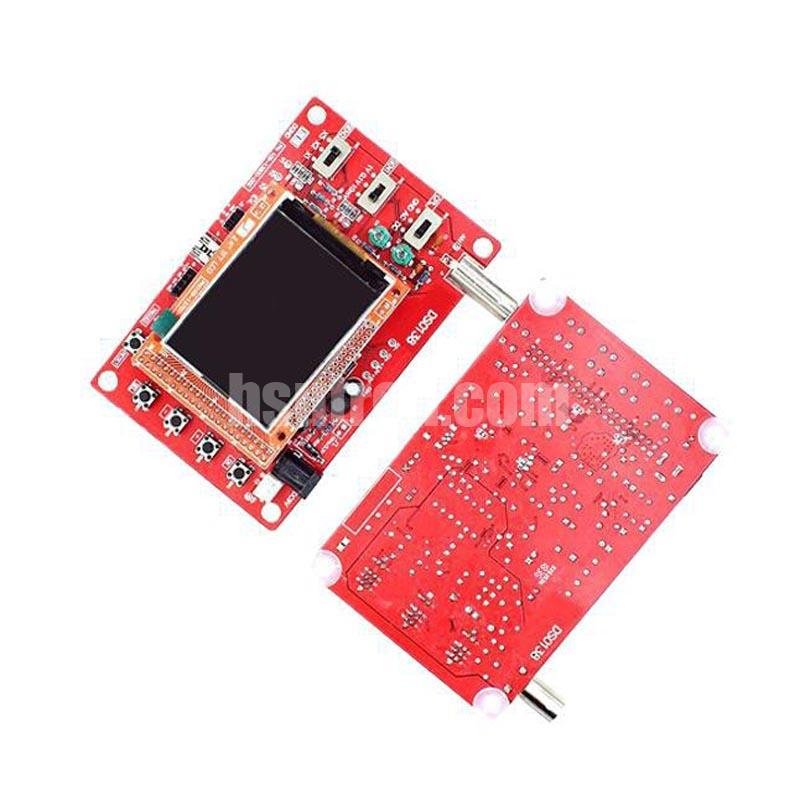

Picture of DSO138:
DSO138
There are various types of components for DSO138, suitable for students to train in component recognition, direct insertion component soldering, and surface mount component soldering.
Students can obtain a practical tool while making, which can effectively observe and measure signal waveforms in many occasions such as audio, video synchronization, low-frequency switching power supply, infrared reception and emission, increasing learning interest and learning effectiveness.
The kit adopts ARM Cortex-M3 processor (STM32F103C8) and includes a 2.4-inch color TFT display screen, which can be used as an ARM development test board.
Provide source code, capable friends can carry out secondary development on the basis of the suite, such as changing it into a millivolt meter, data logger, etc.
Simple and reliable circuit, low price
Characteristic indicators:
DSO138 High real-time sampling rate: 1Msps
Accuracy: 12Bit
Sampling buffer depth: 1024 bytes
Analog bandwidth: 0-200KHz
Vertical sensitivity: 10mV/Div-5V/Div (progressive in a 1-2-5 manner)
Vertical displacement adjustable with indication
Input impedance: 1M Ω
High input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
The coupling methods include DC/AC/GND
Horizontal time base range: 10 μ s/Div-50s/Div (progressive in a 1-2-5 manner)
Equipped with automatic, regular, and single trigger modes, convenient for capturing waveforms
Can be triggered by rising or falling edges
The trigger level position is adjustable and has an indication
Observable waveform before triggering (negative delay)
Freeze waveform display (HOLD function)
Comes with a 1KHz/3.3V square wave test signal source
