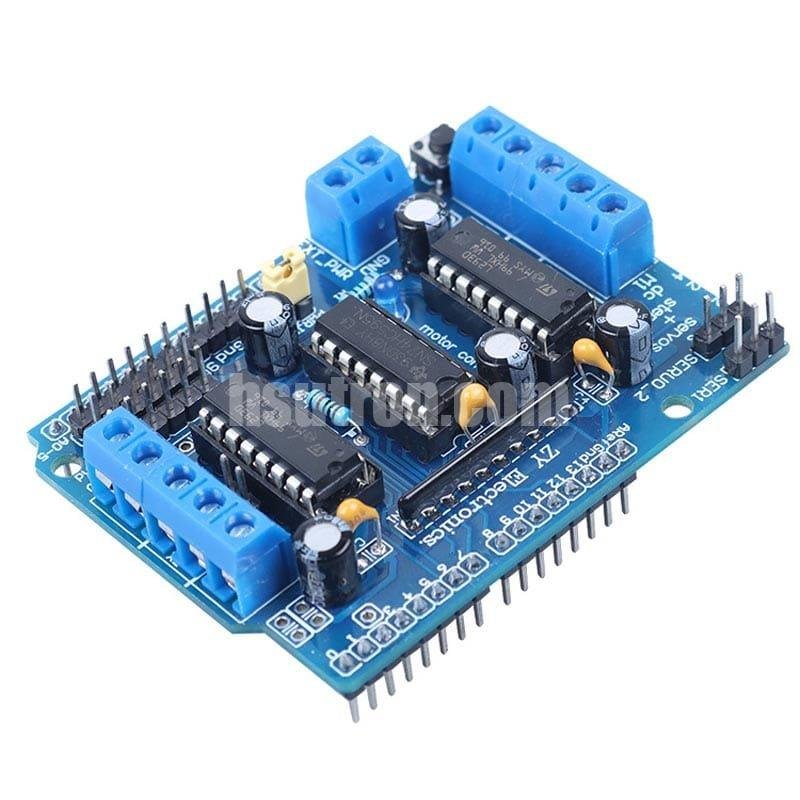

Understanding the L293D Driver Expansion Board
The L293D driver expansion board is an essential component in the realm of robotics, particularly known for its functionality in motor control operations. This expansion board is designed primarily as a dual H-bridge motor driver, enabling users to control the direction and speed of various types of motors, including DC motors and stepper motors. With the capability to manage four separate motors, the L293D provides flexibility for a range of robotic applications.
One of the defining aspects of the L293D board is its technical specifications. The board operates effectively at a voltage range of 4.5V to 36V, making it compatible with standard battery packs and power supplies used in robotics. Additionally, it has a maximum current rating of 600mA per channel, allowing for efficient operation of motors without the risk of overheating. The input control logic is designed to accept TTL logic levels, which means it can be easily interfaced with microcontrollers such as Arduino, Raspberry Pi, and others.
A major benefit of using the L293D driver expansion board is its ease of use in controlling motor speed and direction. By simply altering the input signal, users can effortlessly change the motor’s behavior, making it a favored selection among hobbyists and professionals alike. Its built-in diodes offer the necessary protection against back EMF when motors are stopped or started, which enhances the longevity of both the motor and the driver board.
When comparing the L293D to other motor driver options such as the L298N or more advanced drivers, it is important to note its compact size and affordability. This makes the L293D a go-to choice for various project scales, from simple educational robotics to more complex automation tasks. Overall, the L293D driver expansion board stands out as a reliable and versatile solution in robotics projects, contributing significantly to their operational efficiency.
Integrating the L293D Driver Expansion Board into Your Projects
Integrating the L293D driver expansion board into your robotics projects involves several systematic steps that ensure effective communication and control of motors. The first step is to understand the configuration of the L293D, which can drive both DC motors and stepper motors. Begin by familiarizing yourself with the pinout of the L293D board, which typically features four outputs for motor control and enable pins to activate each motor driver channel.
To connect the L293D to your motors, start by wiring the motor terminals to the output pins on the board. Typically, the left motor is connected to pins 3 and 6, while the right motor connects to pins 11 and 14 of the L293D. For testing purposes, ensure that the power supply provides adequate voltage to the motors—usually between 5V and 12V, depending on the specific motor specifications. Additionally, connect the enable pins of the L293D to your microcontroller to enable motor operation.
For configuration, it is crucial to establish the correct logic level for the input pins corresponding to the control signals from your microcontroller. When using platforms like Arduino or Raspberry Pi, initiate by defining the input and output pins in your code. Below is a sample Arduino snippet for controlling the motors:
void setup() { pinMode(3, OUTPUT); // Control pin for Motor A pinMode(4, OUTPUT); // Control pin for Motor B}void loop() { digitalWrite(3, HIGH); // Motors run forward digitalWrite(4, LOW); delay(2000); // Run for two seconds digitalWrite(3, LOW); // Motors stop digitalWrite(4, HIGH); delay(2000); // Run for another two seconds}Exploring project ideas can expand your understanding of robotics. Beginners may start with simple automated vehicles, while advanced users can delve into the design of robotic arms or even multi-motor systems. The versatility of the L293D driver allows for high adaptability, making it an excellent addition to a variety of projects in the robotics domain.
